Quick Overview

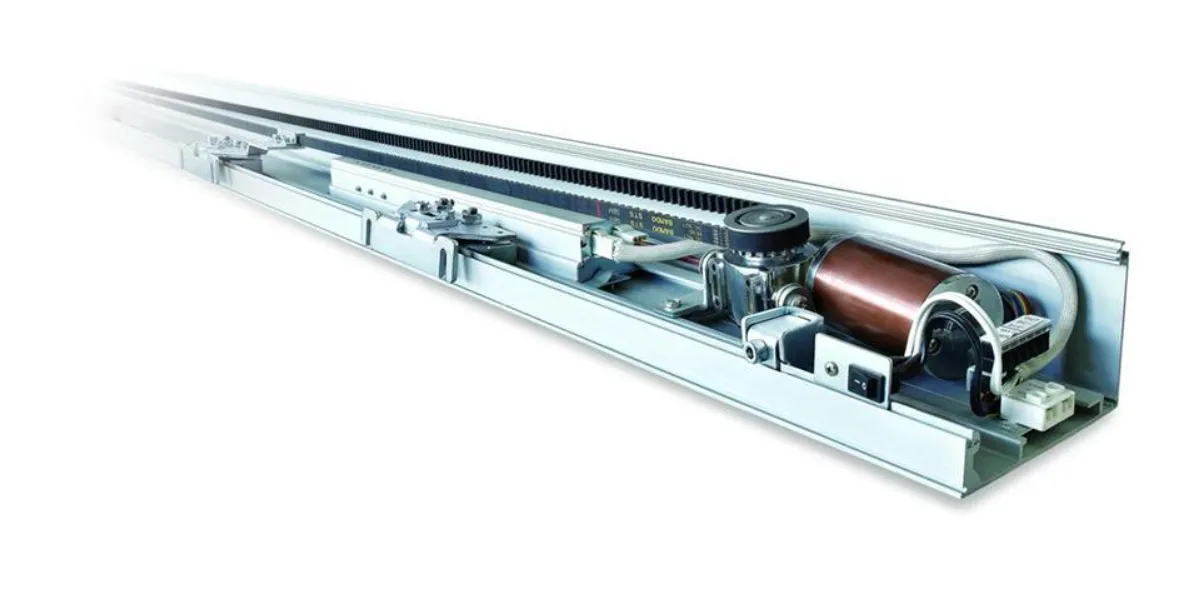

The Sliding series automatic door system is an affordable, reliable and intelligent door system, perfect for a wide range of commercial applications. Capable of working with door leaves up to 200Kg, there are dry contacts on the control board to allow integration with and BMS system.

Features:

The Sliding door system is a cost effective reliable sliding door system with a wide range of compatible activation and safety features. This system is perfect for any commercial auto door application with combined door weights of under 200KG.

Quality Components:

Highly efficient long life and high torque brushless DC motor alongside an intelligent microprocessor that automatically detects door weight and adjusts accordingly to ensure smooth door operation.

Intelligent Safety:

All sliding doors systems come standard with a dedicated fire signal input as well as obstruction sensitivity. Combining these features with infrared presence sensors make this one of the safest doors on the market.

Product Details:

• Our door range uses cutting edge technology with a unique microprocessor system which can rapidly and accurately detect the door size and weight; and set the best operation parameters to make sure the door operates smoothly.
• long life, high torque brushless DC motor drive system. The helical gear transmission ensures stable and reliable operations with continued use of heavy door leaves.
• Interlocking option which prevents door in an airlock situation from opening until the other door has fully closed.
• Obstruction sensitivity- if when closing it meets an obstruction the door will automatically re-open as per the AS 5007-2007. When the power is off, the doors easily manually opened or closed.
• Includes provision for BMS and fire signal link.
